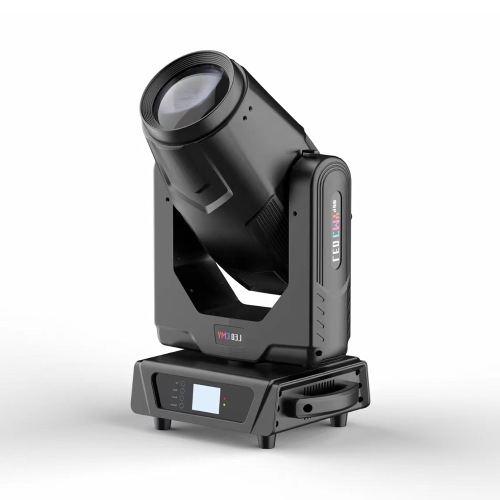

切割灯

Cutting lamp

技术参数

电压：AC100~240v,50/60Hz

光源：大功率470W

LED寿命：20,000小时

CRI：≥74 / ≥90

水平扫描：540°或630° (16 bit精度扫描)

垂直扫描：270° (16 bit精度扫描)

先进的扫描系统更加快速，稳定，安静，具有自动纠错的复位功能

均匀顺滑的CMY+CTO混色系统

1个色片盘: 7个固定式色片+白光，半色效果，

 色片可任意定位，带双向旋转的彩虹效果

1个旋转图案盘：6个插拔式的旋转图案片+白圆，带图案抖动和图案任意定位功能

1个固定图案盘：8个插拔式的固定图案片+白圆，带图案抖动功能

通道：36个国际标准DMX512通道

棱镜盘：旋转3棱镜+6排镜，可正反方向旋转，可棱镜叠加，并具有棱镜定位功能

调焦：电子调焦，超微顺滑调整焦距

光圈：5%~100%顺滑调整

频闪：频率最高可以达到25Hz，并可选择随机频闪及脉冲频闪

调光：0~100%线性调光

雾化：0~100%线性雾化

放大：4.5°~ 50°线性放大

切割盘：一组由4个切角片组成可控制的光斑切角系统，

 整个切角系统可做90°旋转，通过对切光片的精准控制，

 可创造出任意方向的三角形，菱形，长方形等形状光斑

效果盘：超炫模拟动感窜动的火焰，潺潺流水等动态效果

触摸彩色液晶屏显示

带RDM功能

尺寸：510L*345W*800H(mm)

净重：40kgs

毛重：43kgs

technical parameters

Voltage: AC100~240 v,50/60Hz

 Light Source: High Power 700 W White LED,6800K

 LED life :20,000 hours

 CRI：≥74/≥90

 Horizontal scan :540 or 630(16 bit precision scan)

 Vertical scan :270(16 bit precision scan)

 Advanced scanning system is faster, more stable, quiet, with automatic error correction reset function

 Uniform smooth CMY CTO color mixing system

 1 color plate :7 fixed color plate white light, half color effect,

 Color plate can be arbitrarily located, with two-way rotation of the rainbow effect

 1 rotating pattern disk :6 swapping patterns white circle with pattern jitter and arbitrary pattern location function

 1 fixed pattern disk :8 pluggable fixed pattern sheet white circle with pattern jitter function

 Access :36 international standard DMX512 access

 Prism disk: rotating 3 prism 6 row mirror, can rotate in positive and negative direction, can be superimposed by prism, and has prism positioning function

 Focus: electronic focus, ultra smooth focus

 Aperture :5%~100% smooth adjustment

 stroboscopic: up to 25 Hz, and optional random stroboscopic and pulse stroboscopic

 Dimming :0~100% linear dimming

 Atomization :0~100% linear atomization

 Amplification :4.5~50 linear magnification

 Cutting disk: a set of controlled spot tangent systems consisting of four cut corners,

 The whole angle cutting system can do 90 rotation, through the accurate control of the cutting film,

 Can create any direction of triangle, diamond, rectangle and other shape spots

 Effect disk: super-hyun simulation dynamic flame, gurgling water and other dynamic effects

 Touch Color LCD Display

 RDM features

 Dimensions :510 L*345W*800H (mm)

 Net weight: kgs 40

 Gross weight: kgs 43
